SPINDLE SINGLE END TENONER
– Tenon Head
Both top and bottom tenon heads can be individually or simultaneously vertically adjusted. Individual cross adjustement in 1” distance. Each tenon head with fitted 2 H.S.S. Knives.
– Copy Head
For fitting with pattern cutter producing various end patterns. Cope spindle may be vertically or crosswise adjusted.
– Cut off Saw
The saw mechanism is mountes in front of tenon heads for cutting stock to the desired length. Sawblade may be vertically adjusted. Saw head accepts 12” maximum blade diameter.
– Sliding Table
Table slides on precision machined “V” ways, precise sliding accuracy is assured. The bearing support permits for effortless hand moving of table.

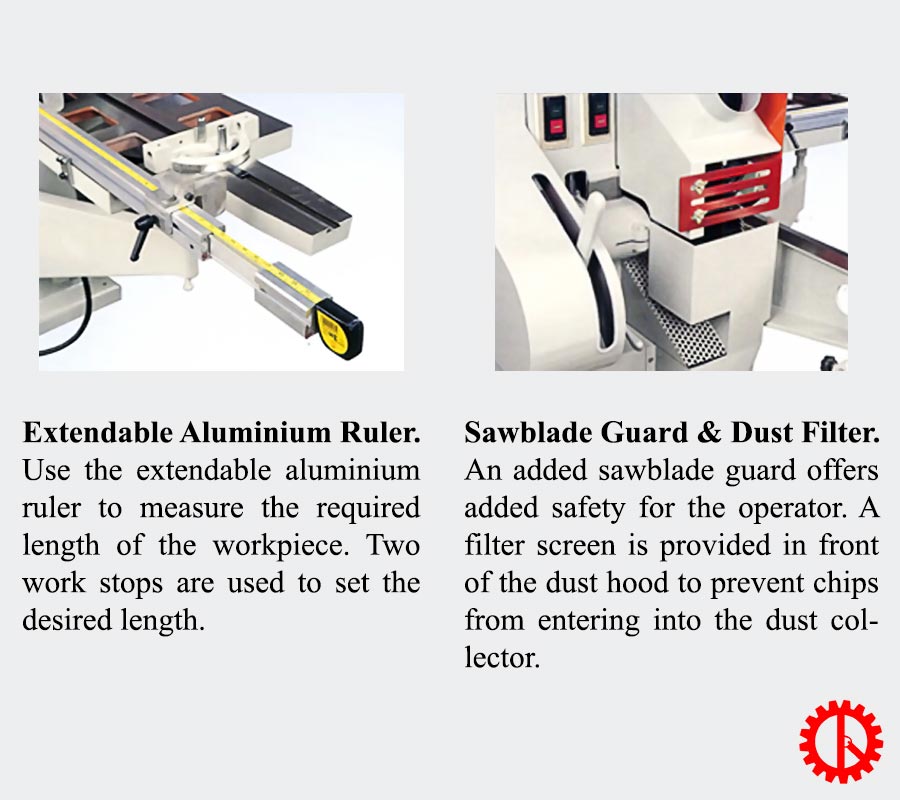

– Extendable Aluminium Ruler
Equipped with two work stops for convenient repetitive cutting.
|Maximum length of tenon cut||120||mm|
|Maximum width of tenon cut||370||mm|

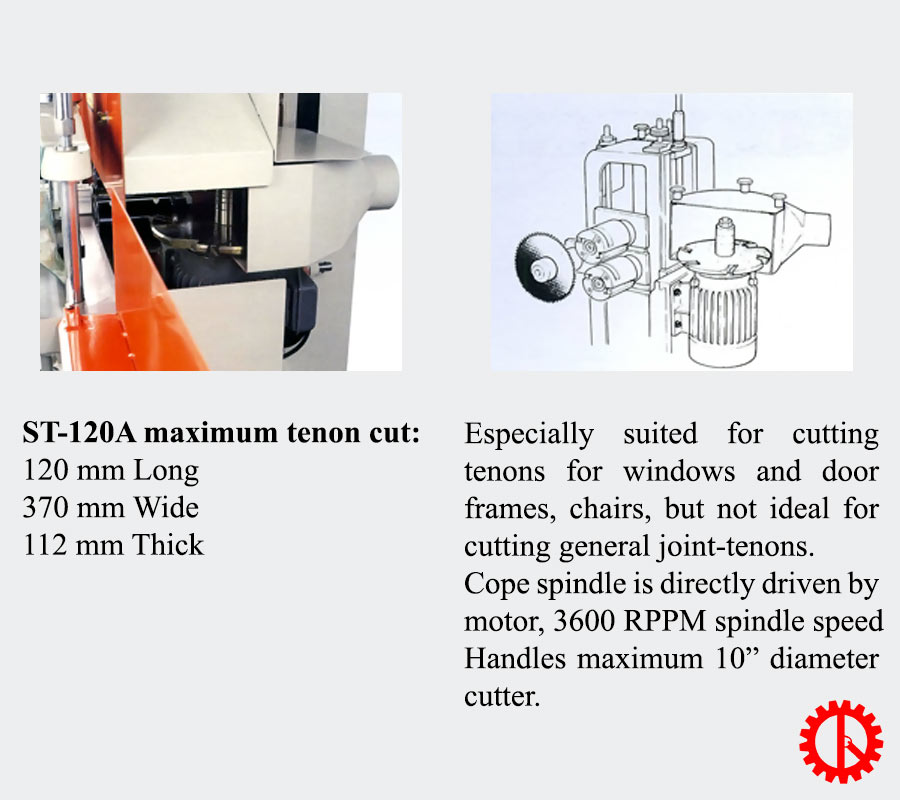

|Maximun thickness of tenon||112||mm|
|Maximum tenoning cutterhead size||Ø 105 (dia.)||mm|
|Maximum tenoning cutterhead size||120 (long)||mm|
|Max. shaping cutter size||Ø 254||mm|
|Max. sawblade diameter||Ø 305||mm|
|Spindle diameter Tenon spindle||Ø 25.4||mm|
|Spindle diameter Cope spindle||Ø 25.4||mm|
|Spindle diameter Saw spindle||Ø 25.4||mm|
|Tenon Spindle speed||3400||rpm|
|Cope spindle speed||3600||rpm|
|Sawblade spindle speed||2800||rpm|
|Saw& tenon head motor horsepower||3||HP|
|Cope head motor horsepower||2||HP|
